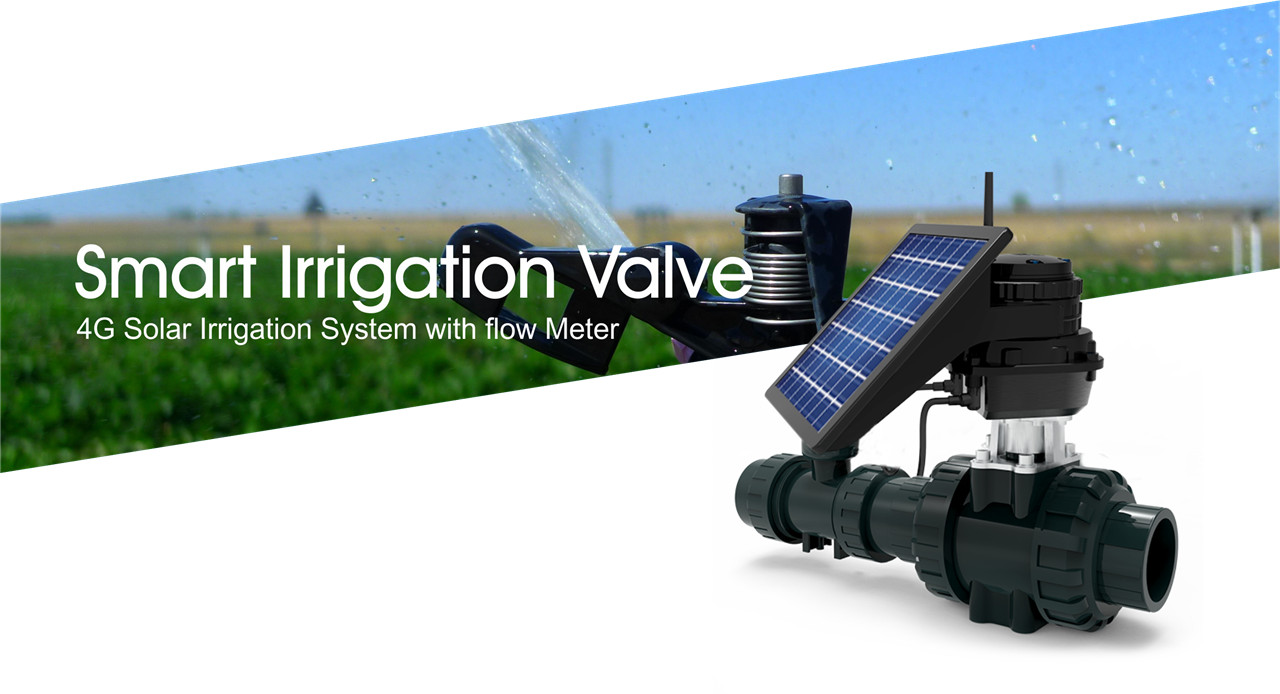

Solar Irrigation Controller with Cellular 4G LTE
Product Decription
The solar powered irrigation controller is equipped with cutting-edge features to revolutionize the way you manage irrigation. With its integration of a solar panel, rechargeable batteries, and a 4G LTE wireless network, this controller offers unbeatable convenience and efficiency.
Its all-in-one design, which includes a ball valve type that ensures seamless water flow control. The controller's standard hole size allows for easy replacement of existing valves, making installation hassle-free. Additionally, the IP67 rating guarantees durability and protection against dust and water, ensuring the longevity of the device even in harsh environmental conditions.
With our intuitive mobile app and web portal, managing your irrigation system has never been easier. You can control and monitor the controller remotely, giving you peace of mind wherever you are. Furthermore, the integration of a flow sensor provides accurate measurement, ensuring optimal water usage and preventing wastage.
Its not limited to a specific industry or application. Its versatility makes it suitable for a wide range of uses, including landscaping, greenhouse management, orchard irrigation, and agricultural irrigation. Whether you have a small residential garden or a large-scale agricultural operation, our solar irrigation controller can meet your needs.

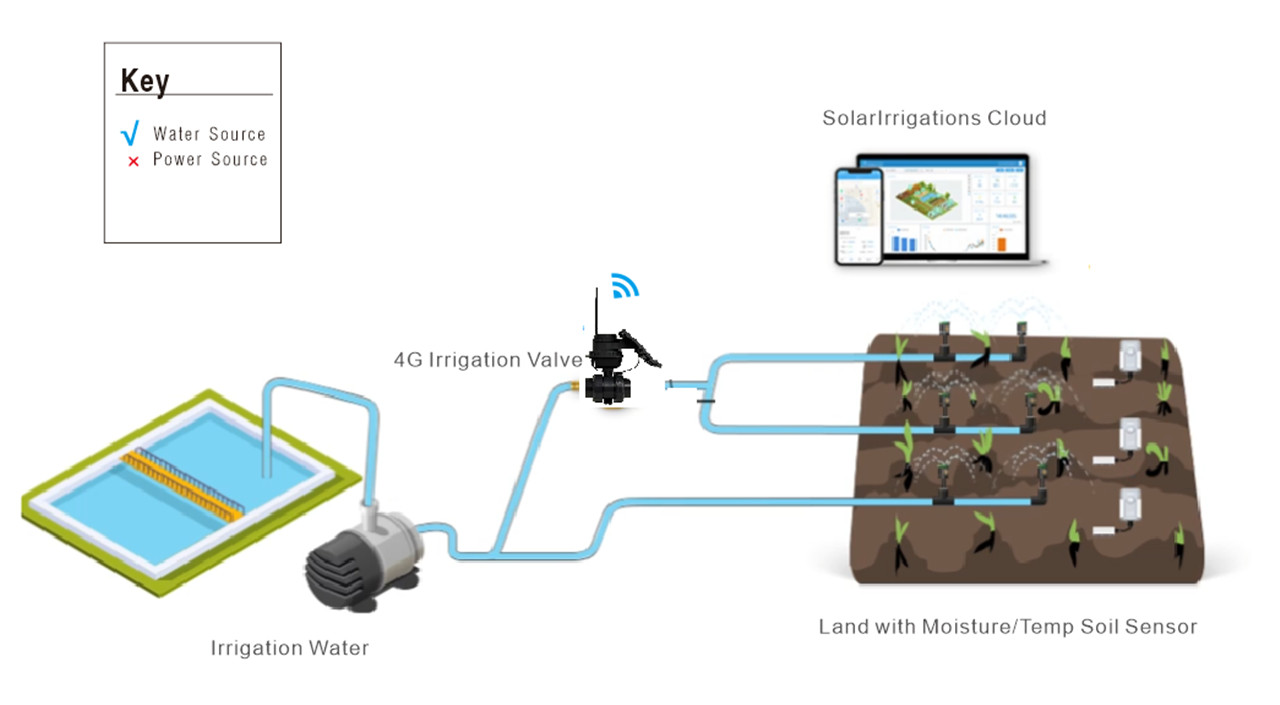

How smart water controller works？
Its utilizing solar energy to power and control the operation of an irrigation system.

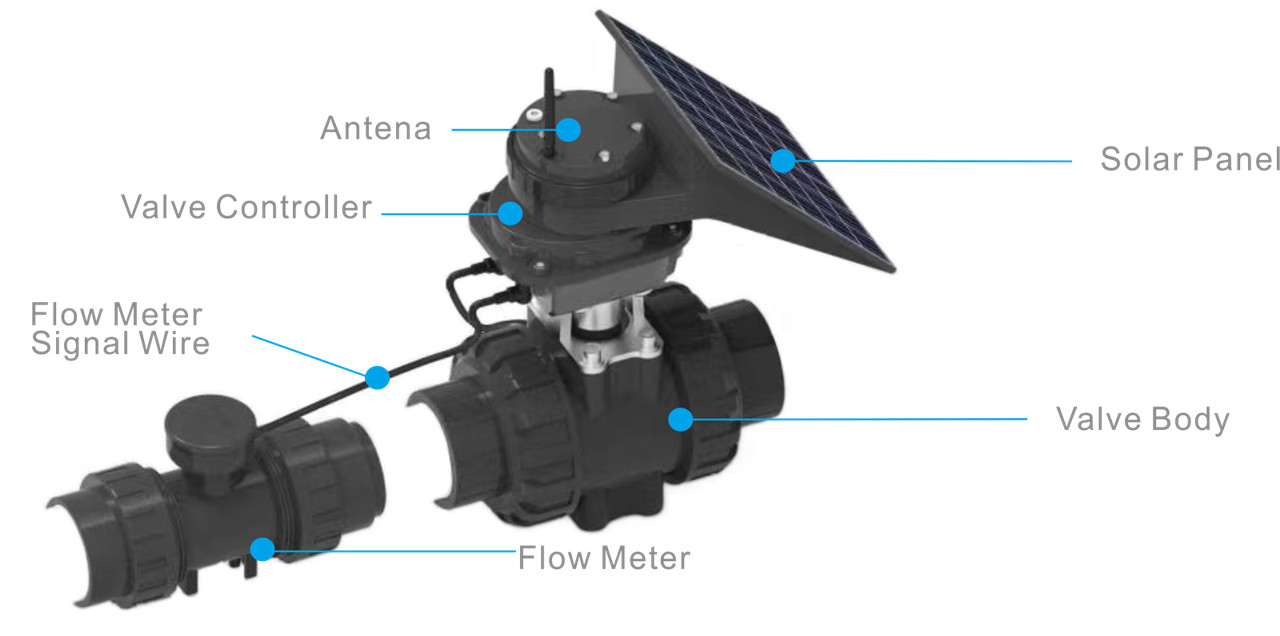

● Solar Panel: Captures sunlight and converts it into electrical energy.
● Battery Storage: The electrical energy generated by the solar panel is stored in a battery.
● 4G Connectivity: Allow the valve to communicate with Cloud system
● Sensor Integration: Integrated flow sensor data is transmitted to the cloud system via the 4G connection.
● Cloud System: The central control system, which can be a computer or a mobile application, receives the sensor data and analyzes it to determine the irrigation needs of the field.
● Remote Operation: Based on the analysis from the cloud system, it sends commands to the 4G solar irrigation valve to open or close, controlling the flow of water to the fields. This can be done remotely, providing convenience and flexibility to the user.
Specifications
|
Mode No. |
MTQ-02F-G |
|
Power Supply |
DC5V/2A |
| Battery : 3200mAH(4cells 18650 packs) | |
| Solar Panel:polysilicon 6V 5.5W | |
|
Consumption |
Data Transmit:3.8W |
| Block:25W | |
| working Current: 65mA,sleep:10μA | |
|
Flow Meter |
working pressure：5kg/cm^2 |
| Speed Range:0.3-10m/s | |
|
Network |
4G cellular Network |
|
Ball Valve Torque |
60Nm |
|
IP Rated |
IP67 |
|
Working Temperature |
Enviroment Temp: -30~65℃ |
| Water Temp:0~70℃ | |
|
Available ball Valve Size |
DN32-DN65 |
