Solar powered irrigation controller for smart watering system

Short Description:

The Solar powered irrigation controller for smart watering system using LORA (Long Range) technology, enables seamless communication and control over a wide area, allowing for efficient and precise irrigation management. With features like remote monitoring, real-time data analysis, and customizable irrigation schedules, this smart controller optimizes water usage, saves resources, and maximizes crop yield.

Work Power: DC5V/2A, 3200mAH battery

Solar Panel: PolySilicon 6V 8.5w

Consumption: 65mA(working), 10μA(sleep)

Flow Meter: Exernal, Speed Range:0.3-10m/s

Network: LORA

Pipe Size: DN32-DN65

Valve Torque: 60Nm

IP Rated: IP67

Send email to us

Product Detail

Product Tags

Product Decription

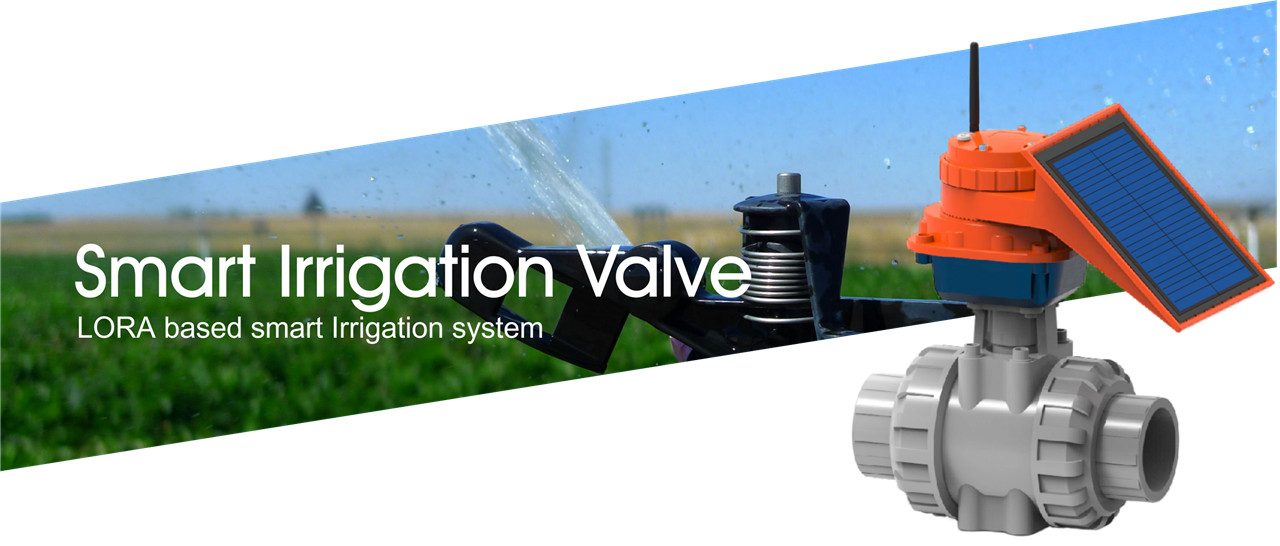

Lora irrigation controller for Smart Agriculture Automatic Irrigation System02 (1)

The LORA Smart Irrigation Controller is a cutting-edge solution designed specifically for smart agriculture automatic irrigation systems. Leveraging the power of LORA (Long Range) technology, this controller revolutionizes the way irrigation systems are managed and controlled. With the ability to communicate over long distances, the LORA technology allows farmers and agricultural professionals to remotely monitor and manage their irrigation systems with ease. This means that they can maintain control over their irrigation operations even from a distance, saving valuable time and effort.

The LORA Smart Irrigation Controller also offers seamless integration with other smart agriculture technologies, making it an integral part of a comprehensive and connected farming system. By synchronizing with sensors, weather stations, and other components of the smart agriculture ecosystem, the controller further enhances its capabilities and effectiveness. In addition to its advanced technology and features, the LORA Smart Irrigation Controller is designed to be user-friendly and durable. Its intuitive interface makes it easy to operate and configure, while its robust construction ensures reliability even in harsh environmental conditions.

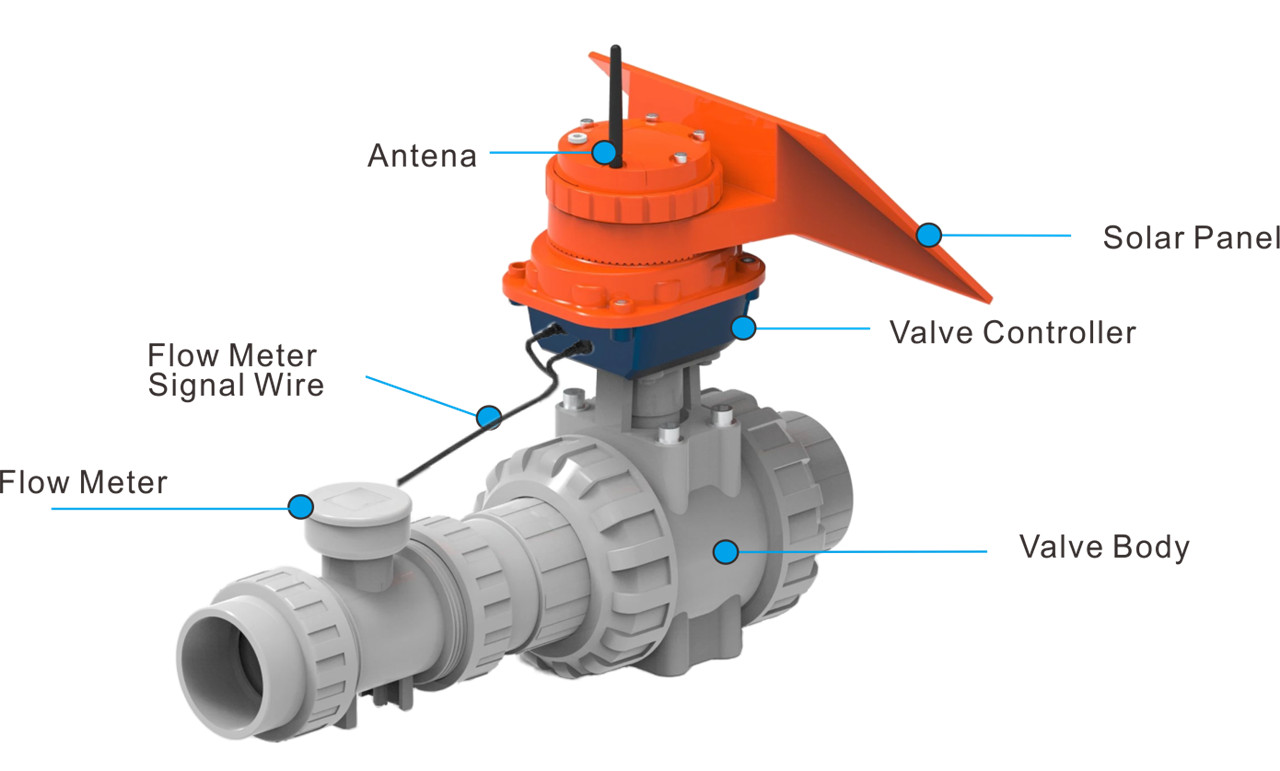

Lora irrigation controller for Smart Agriculture Automatic Irrigation System02 (2)

How does a Lora irrigation valve works?

A solar irrigation valve is an automatic irrigation controller used in solar-powered irrigation systems to control the flow of water to the irrigation system. It typically consists of a valve body, an actuator, and a solar panel. The solar panel is responsible for generating electricity from sunlight. It converts the solar energy into electrical energy, which is then used to power the actuator. The actuator is the component that controls the opening and closing of the valve. When the solar panel produces electricity, it powers the actuator, which in turn activates the valve, allowing water to flow through the irrigation system. When the electric current is interrupted or stopped, the actuator closes the valve, stopping the water flow.

The solar irrigation valve can be controlled remotely through LoraWan cloud control system with web platform and mobile app. This allows farmers to schedule and automate irrigation cycles according to their specific crop needs.

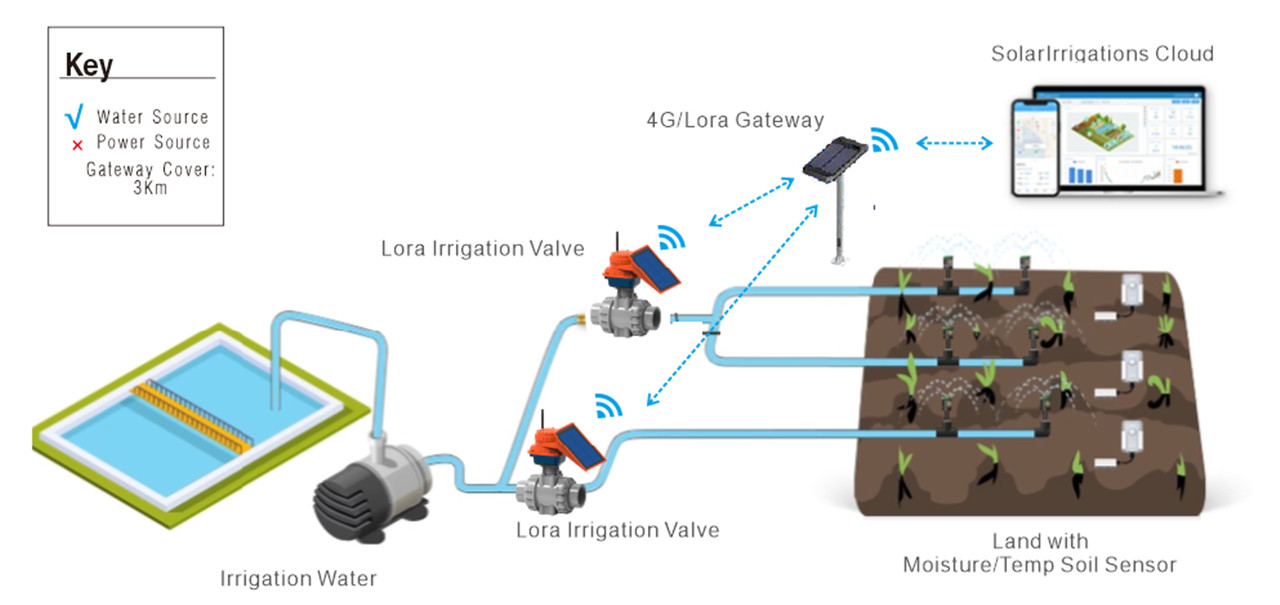

Lora irrigation controller for Smart Agriculture Automatic Irrigation System02 (3)

Specifications

Mode No.	MTQ-02F-L
Power Supply	DC5V/2A
	Battery : 3200mAH(4cells 18650 packs)
	Solar Panel: polysilicon 6V 5.5W
Consumption	Data Transmit:3.8W
	Block:25W
	working Current: 26mA,sleep:10μA
Flow Meter	working pressure：5kg/cm^2
Flow Meter	Speed Range:0.3-10m/s
Network	LORA
Ball Valve Torque	60Nm
IP Rated	IP67
Working Temperature	Environment Temp: -30~65℃
Working Temperature	Water Temp:0~70℃
Available ball Valve Size	DN32-DN65
