Agriculture weather station for small farm irrigation systems
Introduction
The innovative 6in1 Ultrasonic Weather Station - a comprehensive solution for accurate meteorological data collection. This advanced weather station is equipped with five primary measurement sensors, allowing you to obtain precise information regarding atmospheric temperature, humidity, wind speed and direction, rainfall, and air pressure.But that's not all - we've taken it a step further by offering optional add-ons such as altitude, UV and radiation measurements, illumination readings, and PM2.5 detection.

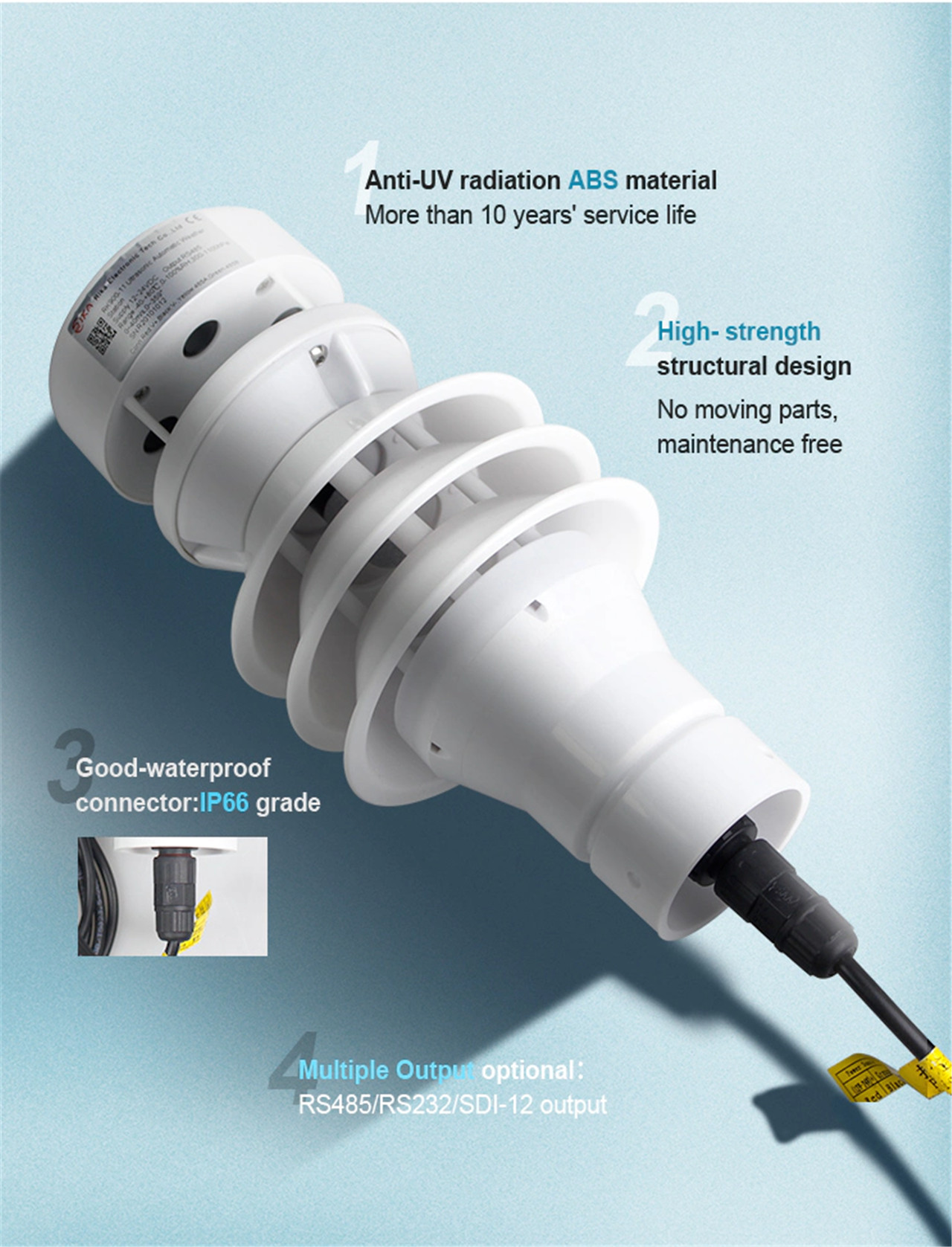

Designed with convenience and reliability in mind, our smart home weather station is engineered in a compact and efficient manner, making it easy to install and maintain. The ultrasonic technology utilized in the measurements ensures unparalleled accuracy and longevity, guaranteeing consistently excellent performance.
To make this weather station even more versatile, we've included a solar panel. This innovative addition allows for autonomous and sustainable operation, making it an excellent choice for smart irrigation systems and home weather monitoring applications. This seamless integration of green energy ensures not only continuous operation but also a significant reduction in energy consumption, further contributing to a greener and more sustainable future.Whether you're an avid gardener, a data enthusiast, or a homeowner concerned about environmental conditions, our 5in1 Ultrasonic mini Weather Station is the perfect tool for you.
Technical Specifications
|
Parameters |
Range |
Resolution |
Accuracy |
|
Wind speed(Default) |
0-40m/s |
0.1m/s |
±5% |
|
Wind direction(Default) |
0-359° |
1° |
±3° |
|
Atmospheric temperature |
-40℃~80℃ |
0.1℃ |
±5％ |
|
Air Humidity |
0－100% |
±3％ |
1% |
|
Atmospheric pressure |
300~1100hPa |
0.1hPa |
±1 |
|
Rainfall |
0-200mm/hr |
0.1mm |
±5％ @ wind speed<5m/s ） |
|
Altitude(optional) |
-500m – 9000m |
1m |
±5％ |
|
Radiation (Optional) |
0-2000W/m2 |
0.1 W/m2 |
±5％（ @ Vertical irradiation） |
|
Illumination (Optional) |
0-200000lux |
0.1 lux |
±5％（ @ Vertical irradiation） |
|
UV |
0-2000W/m2 |
0.1W/m2 |
±10% |
|
PM2.5(Optional) |
0-2000 ug/m3 |
1 ug/m3 |
±10％ |
|
Power Supply |
7-30VDC |
||
|
Power consumption |
1.7W |
||
|
Output Signal |
RS232/RS485(Modbus or NMEA-183), SDI-12 |
||
|
Operating Temperature |
-20℃-+60℃ |
||
|
Ingress Protection |
IP65 |
||
|

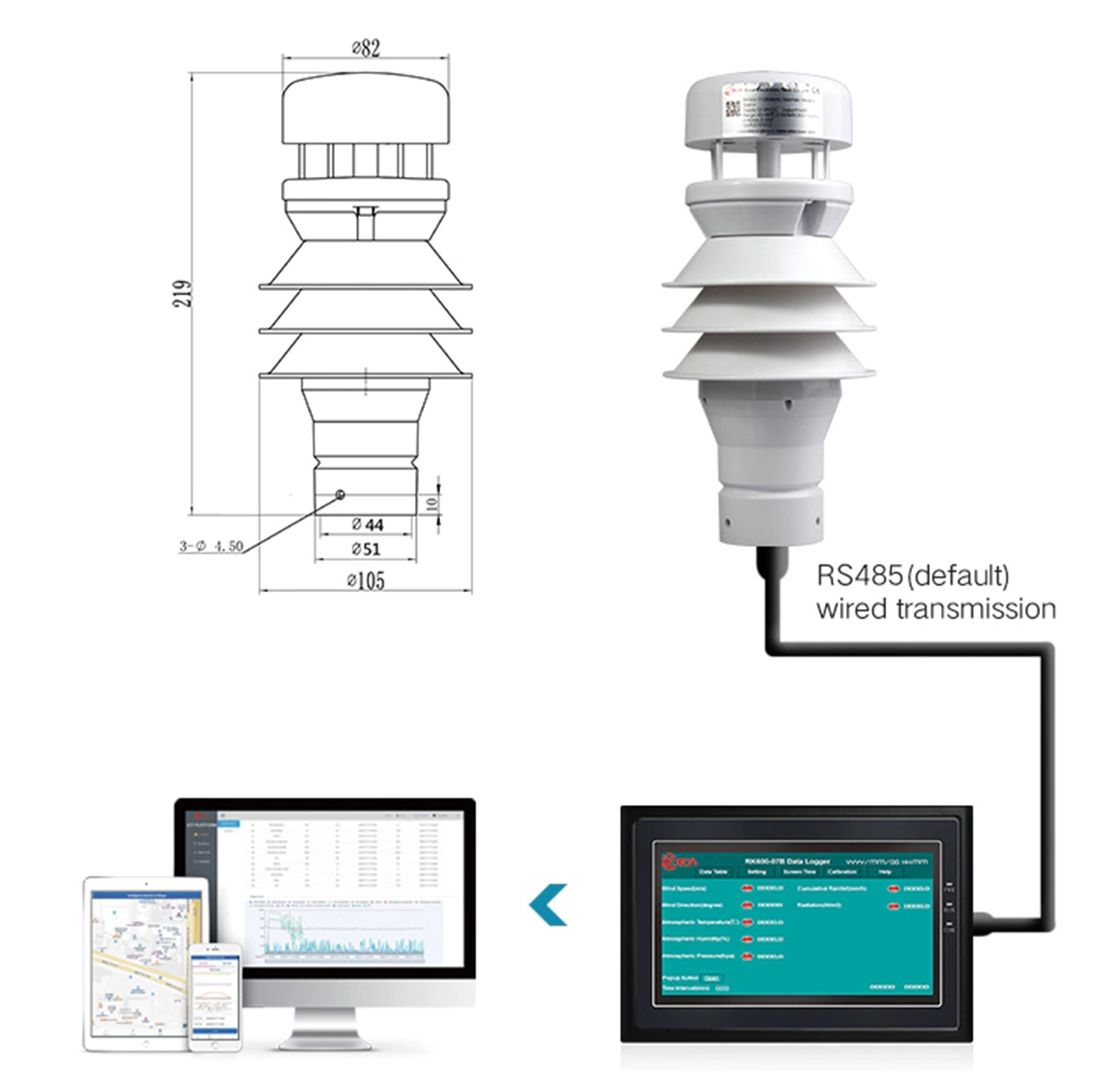

Dimension |
Φ82mm×219mm |
||
|
Weight(unpacked) |
0.38kg |
||
|
Main material |
ABS,white |
||
