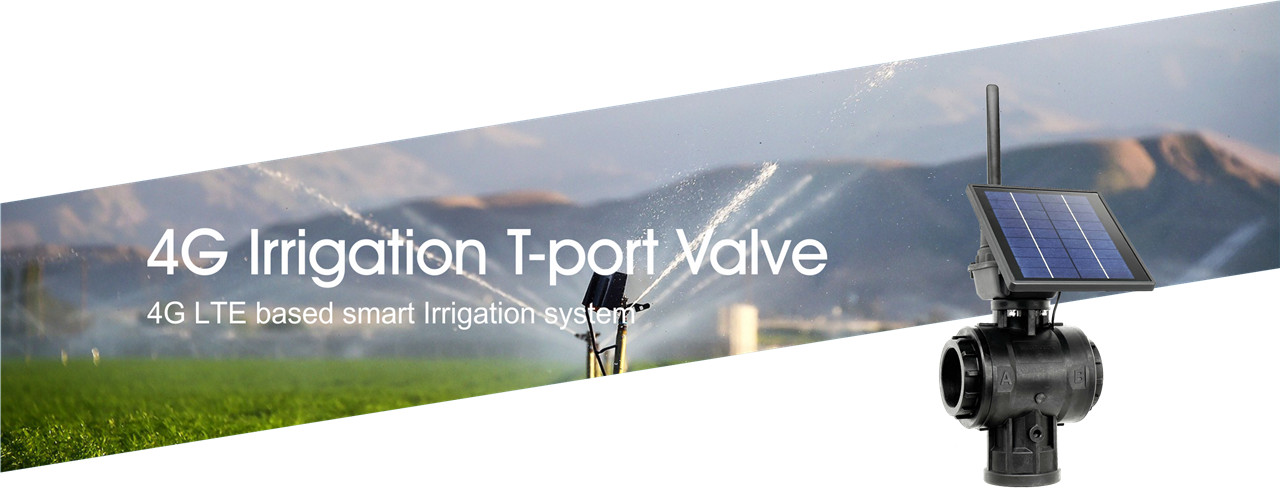

4G 3 Way Actuated Valve for automatic plant watering system
Product Decription
This cutting-edge Solar Powered irrigation 3 way valve, designed specifically for automatic plant watering systems. This innovative valve comes equipped with a detachable solar panel and rechargeable batteries, ensuring a continuous and sustainable power supply. The DN80 standard size and ball valve type make it compatible with a wide range of irrigation systems, providing seamless integration.
Built to withstand the toughest conditions, this valve boasts an IP67 rating, making it dustproof and capable of withstanding immersion in water up to 1 meter deep for 30 minutes. This level of durability ensures reliable operation, even in challenging outdoor environments. One of the standout features of our Solar Powered 3-Way Irrigation Valve is its intelligent design. With

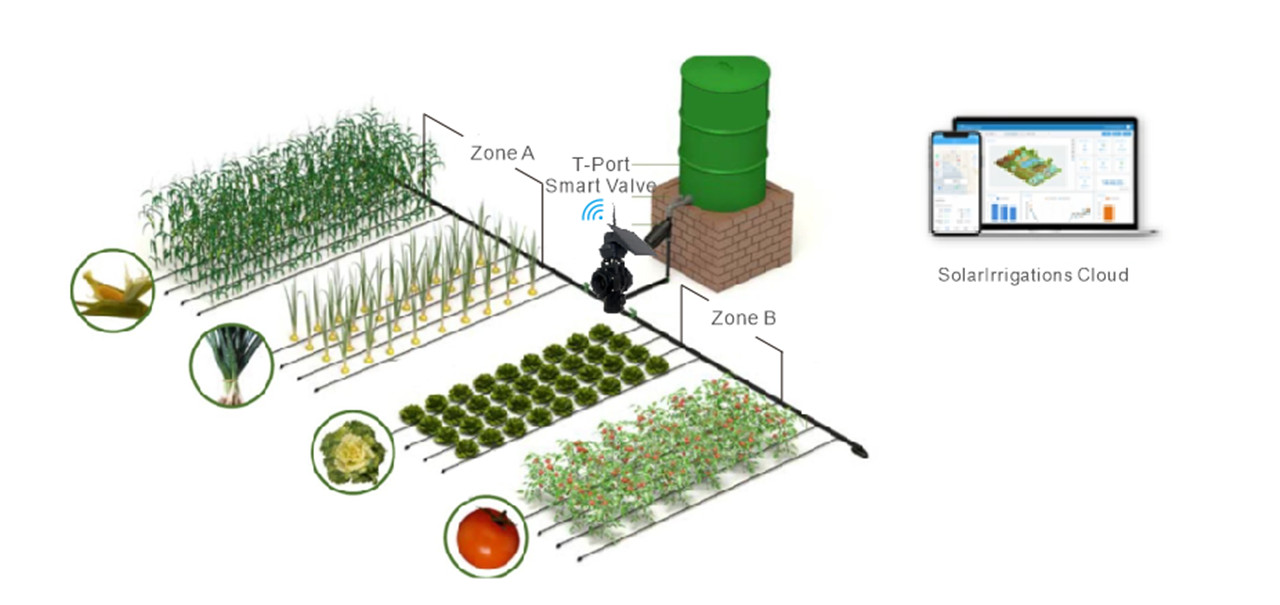

Its 3-way configuration, this valve allows for one input and two output pipes, offering a variety of options for water distribution. This unique feature enables users to direct water flow either to one section of the garden or split it between two separate areas, maximizing efficiency and optimizing the watering process.
Additionally, this valve is equipped with open percentage support, allowing users to adjust the flow of water to control the irrigation rate. This level of control ensures precise and customized watering, tailored to the specific needs of each plant. The integrated flow sensor provides accurate data on the water flow, facilitating efficient water management and preventing wastage.
With the added advantage of 4G LTE support, this valve can be remotely monitored and controlled. Users can easily access real-time data and make adjustments as needed from any location, ensuring optimal plant health and reducing manual intervention.
How three way irrigation valve works？
A 3-way irrigation ball valve is a type of valve that allows water to flow from one input water inlet and be distributed to two separate outlets, labeled as "A" and "B". It is designed specifically for irrigation systems, providing a convenient way to control the flow of water to different areas of a garden or agricultural field.
The valve operates using a ball inside the body that can be rotated to redirect the flow. When the ball is positioned to connect the inlet with outlet "A", the water will flow through outlet "A" and not to outlet "B". Similarly, when the ball is rotated to connect the inlet with outlet "B", the water will flow through outlet "B" and not to outlet "A".
This type of valve offers flexibility in managing water distribution and allows users to adjust where the water is directed for efficient irrigation.
Specifications
| Mode No. | MTQ-02T-G |
| Power Supply | DC5V/2A |
| Battery : 3200mAH(4cells 18650 packs) | |
| Solar Panel:polysilicon 6V 5.5W | |
| Consumption | Data Transmit:3.8W |
| Block:25W | |
| working Current: 65mA,sleep:10μA | |
| Flow Meter | working pressure：5kg/cm^2 |
| Speed Range:0.3-10m/s | |
| Network | 4G cellular Network |
| Ball Valve Torque | 60Nm |
| IP Rated | IP67 |
| Working Temperature | Enviroment Temp: -30~65℃ |
| Water Temp:0~70℃ | |
| Available ball Valve Size | DN50~80 |
